Divided Electromagnetic Flowmeter PCL-E20

Product overview

The PCL-E20 series electromagnetic flowmeter is a fully intelligent flowmeter developed using advanced technology both domestically and internationally. It has the characteristics of high measurement accuracy, high reliability, good stability, and long durability.

The PCL-E20 series strictly controls and pays attention to every step in the process of design, material selection, process manufacturing, production assembly, and factory testing; Equipped with calibration devices compatible with different calibers, each electromagnetic flowmeter manufactured has undergone real flow calibration. We have designed and developed specialized large-scale production software and hardware for electromagnetic flow meters, effectively ensuring the long-term high quality and high quality of our products. The product adopts a wide temperature range LCD display and a simple display interface, with complete and practical menu functions, simple and convenient button operation, and convenient on-site operation.


Features

 The measurement accuracy is not affected by factors such as fluid density, viscosity, temperature, pressure, etc

There are no intercepting or blocking components in the measurement pipeline, which will not cause pressure loss or blockage

Simple structure, convenient installation, and low requirements for straight pipe sections

 No mechanical transmission components, sturdy and vibration resistant

 Adopting a multi electrode structure, stable measurement, high accuracy, equipped with a grounding electrode, without the need for a grounding ring, saving costs

When power is off, EEPROM can save set parameters and accumulated flow values

The converter uses a low-power microcontroller for data processing, with reliable performance, high accuracy, and low power consumption. The LCD meter can display parameters such as cumulative flow rate, instantaneous flow rate, flow rate, and flow percentage

Bidirectional measurement system, capable of measuring forward and reverse flow rates

Low frequency rectangular wave excitation improves flow stability, reduces power loss, and has superior low flow rate characteristics

Application

Process control fields in industries such as water supply, heating, environmental protection, food, water conservancy, metallurgy, and pharmaceuticals.


Product Parameters

Performance parameters


Pipe diameter

Flange type DN10DN1600

Accuracy

± 0.2% FS (optional), ± 0.5% FS (default)

Electrode form

Standard fixed electrode

Rated pressure

GB (National Standard)PN2.5PN6PN16PN25PN40

ANSI (American Standard)CLASS 150CLASS 300

DIN(German standard)PN10, PN1, PN25, PN40

JIS (Japanese Standard):5K, 10K, 16K, 20K

Special pressure: customizable

Electrode material

316L, Titanium (Ti), Hastelloy (HB, HC), Tantalum (Ta), Tungsten Carbide (WC), Platinum Iridium (Pt)

Lining

Neoprene rubber (CR), natural rubber (NR), polyurethane rubber (PU), polytetrafluoroethylene (PTFE), F46, PFA

Measuring catheter

Stainless steel

Flange and gauge body

Carbon steel (conventional), stainless steel (optional)

Converter housing

Aluminum alloy die-casting

Power supply

85V264V AC47Hz63Hz(220V AC)18V30V DC(24V DC)

Output signal

4mA~20mA DC (load resistance 0 Ω~750 Ω, active output signal)

Hart output signal signal

Frequency and pulse output signal (optional for passive and active output signals)

Upper and lower limit alarm output signal, air traffic control alarm

RS485 output signal (standard ModBus protocol)

Profibus-DP (customized), Profibus-PA (customized)

Wire connection

M20 × 1.5 Waterproof joint

Protection grade

IP68 (sensor part)

Ambient temperature

-20℃60℃

Storage temperature

-40℃60℃

Relative humidity

5%90%

Medium temperature

-10 ℃~80 ℃ (chloroprene rubber)- 10 ℃~120 ℃ (PTFE);

-10 ℃~80 ℃ (polyurethane rubber)- 10 ℃~150 ℃ (F46)

Dielectric conductivity

>5μS/cm

Explosion proof

Explosion proof (24VDC) certificate number: CNEx22.1736X logo: Exd ia mb IIC T6 Gb

Connecting cables

10 meters (default), the cable length between the meter head and the sensor is of other lengths and needs to be customized separately

Overall dimension

Structure

                         Dimension                       Unit: mm

PCL-E20 split electromagnetic flowmeter




In the above figure, A represents the length of the flow meter guide pipe; H represents the height of the flow meter; N represents the number of bolt holes; L represents the diameter of the bolt hole; K represents the diameter of the bolt hole center circle; D represents the outer diameter of the flange. The overall dimensions of the split electromagnetic flowmeter are shown in Table 1.




Production process

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor


                                         Testing Equipment

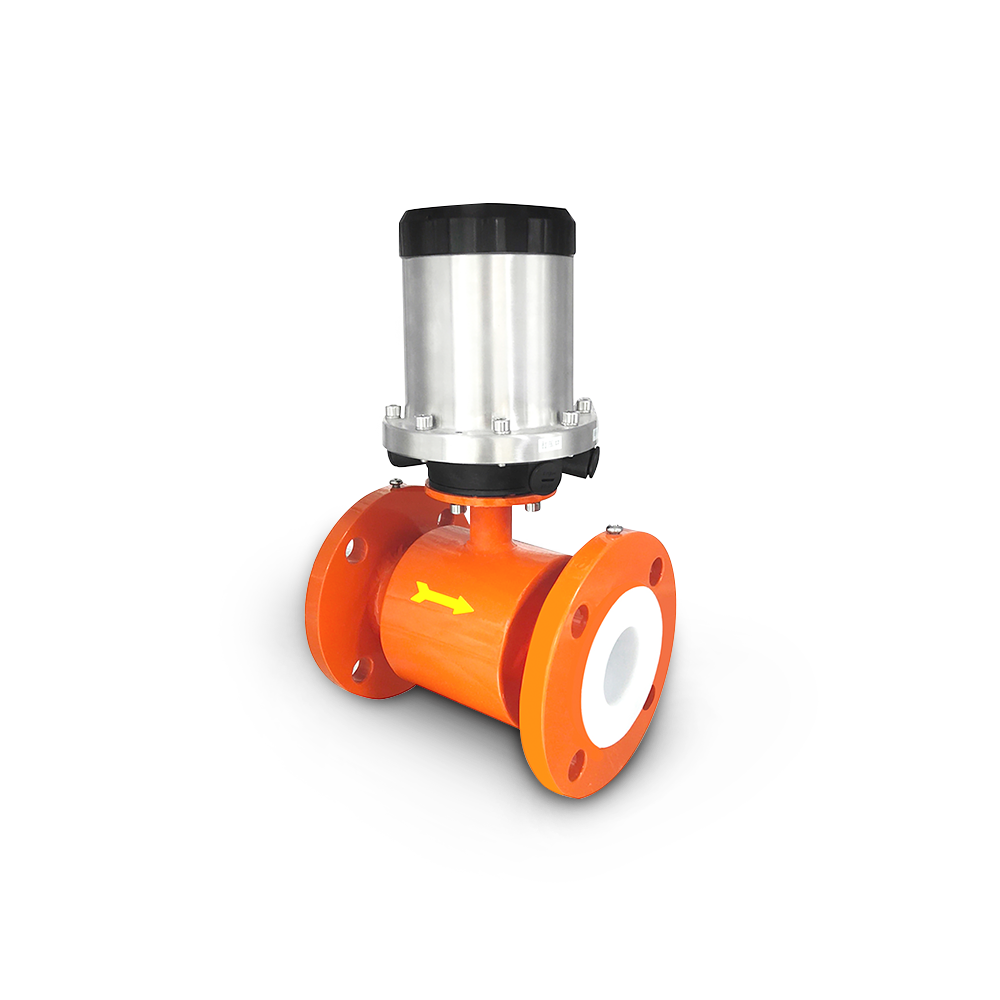

PCL Battery Type Electromagnetic Flow MeterPCL Battery Type Electromagnetic Flow Meter

PCL Battery Type Electromagnetic Flow MeterPCL Battery Type Electromagnetic Flow Meter

Certificate

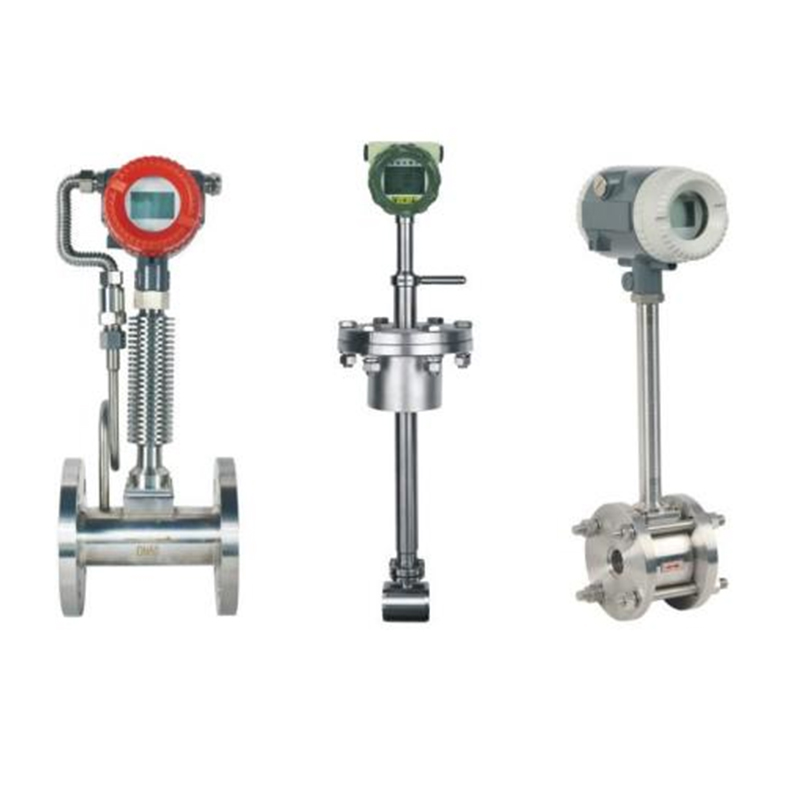

PCWJ Series Vortex Flow Meter
